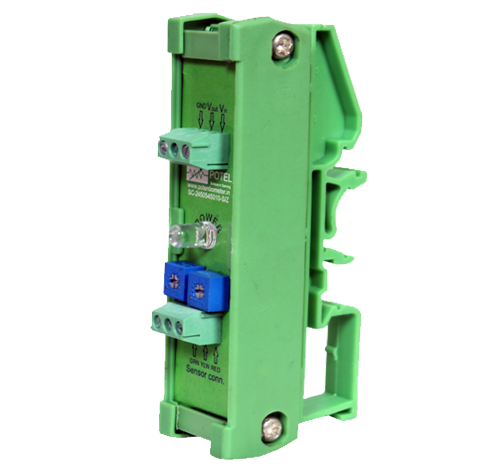

- SC-XX is a Electronic Card to amplify the voltage signal or Convert potentiometer /Resistance input to Voltage signal.
- In an extremely compact size of board 12 mm X 22mm X 73mm card mounted in a din rail enclosure of 23mm width and 83mm length and 35mm Height makes it a ideal product to use it with out enclosure in small size constraint location as well.
- SC-XX has a additional 5Vdc transmitter supply output makes it very suitable product for instrumentation industry. For heavy electrical noise atmosphere we have a model with isolated Input and output signal.
- Span and Offset trim potentiometer to trim it and Power LED makes it look elegant and convenient for industry use.
Electrical Specification
| Sr.No | Parameter | Specification |
|---|---|---|
| 1 | Input to card (Vin) | 12- 35Vdc or 24Vdc |
| 2 | Sensor Supply (Vout) | 5Vdc @ 50mA |
| 3 | Input Current @ 24Vdc | 150mA |
| 4 | Input signal | Potentiometer >1K ohms // 0-100mV // 0-5Vdc // 0.5 - 4.5Vdc // 0.5-2.5Vdc // 0-1Vdc (any other input signal on request) |
| 5 | Output Signal | 0-5Vdc // 0-10Vdc(any other on request.) |
| 6 | Output Current | 5mA |
| 7 | Accuracy | 1% F.S (0.5% on request) |

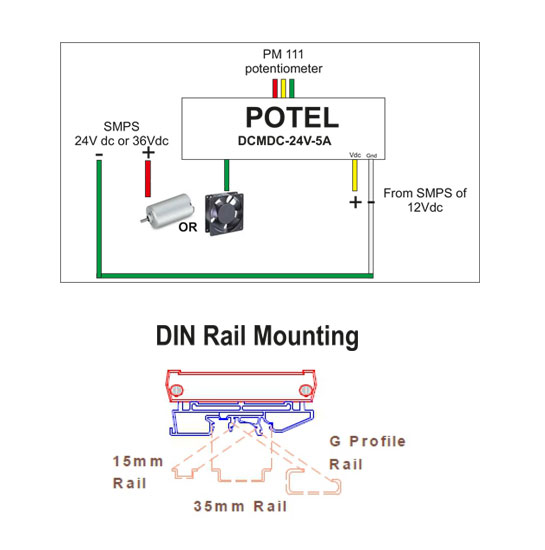

DC Motor Speed Control Card
Mounting
For best performance of RHS-12 below points needs to be taken into consideration.
1) The hole in the panel should not be more than 9.5mm.
2) RHS-12 should be mounted with Star washer given along with the product and perpendicularity between the panel and axis of Sensor should be maintained.
Magnetic Cross Talk
If two RHS-12 units are to be installed closer than 2 inch (measured between the center of both shafts),a magnetic shield, such as a small steel plate should be installed in between to prevent one encoder from c a u s i n g s m a l l c h a n g e s i n r e p o r t e d p o s i t i o n t h r o u g h m a g n e t i c f i e l d c r o s s - t a l k .
Material
| Component | Material |
|---|---|
| Housing | Brass |
| Shaft | Stainless |
| Ball Bearing | Stainless |
Environment
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 75 deg (standard) -40 to 140 deg ( on request) |
| Storage Temperature | -40 to 75 degC |
| Vibration | 20g |
Ordering Information
For Detailed Drawing on Sensor with Servo Mount Please drop a E-mail on pavankinariwala@gmail.com
For SPI, I2C, Quadrature, Incremental and Redundant output version sensor comes along with Fly wire output.
Shaft Customization is possible.
Tight Motion of shaft is possible.

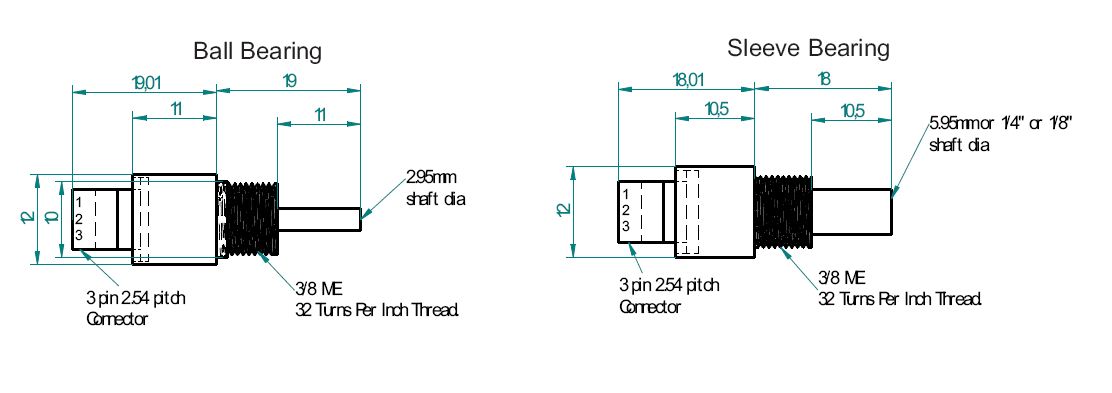

| Parameters | Ball Bearing | Sleeve Bushing |
|---|---|---|
| Starting Torque | 8 gms. cm | 150 gms. cm |
| Maximul Radial | Load 900 gms | 470 gms |
| Maximum Axial Load | Nil | Nil |
| Maximum Shaft Speed | 1500 RPM | 100 RPM |
| Bearing Life cycles | 20 X 10^6 @rated radial Load | 500 X 10^6 @rated radial Load |
| Weight of sensor | 12 gms | 12 gms |
| Shaft Dia | 2.95mm | 3.15mm or 6 mm or 6.3 mm |
| Parameter | Value |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc(+/- 10%) or 3.3Vdc |
| Supply Current | 20mA |
| Response time | 50mS |
| Resolution | 12bit |
| Load Resistance | Minimum 10k ohms |
| Output (Voutput) | 3% to 97% Vsupply (Ratiomatric) |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc(+/- 10%) or 3.3Vdc |
| Supply Current | 20mA |
| Frequency | 200Hz, 500Hz, 1K Hz or 2 Khz based on requirement |
| Resolution | 12bit |
| Output (Voutput) | 0% to 100% duty Cycle |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
The Graph is just for indicative purpose. Offset between Output 1 and Output 2 can be change or made
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc |
| Supply Current | 50mA |
| Electrical Angle | Default 359.92 deg. (Customization possible) |
| Response Time | 1kHz |
| Resolution | 12bit |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Load Resistance | Minimum 10K Ohms |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc / 3.3Vdc |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 10000RPM Max. |
| PPR (Pulse Per Revolution)(A&B) | 25,50,100,200,256,300,400,500,512,1000,1024 A & B Pulse Lag each other by 90deg.(TTL) |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Index pulse Z | 1 pulse per RPM (TTL) |
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc / 3.3Vdc |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 400RPM Max. |
| PPR (Pulse Per Revolution)(A&B) | 8,16,32,64,128,256,512,1024,2048 A & B Pulse Lag each other by 90deg.(TTL) |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Index pulse Z | 1 pulse per RPM (TTL) |
The RHSS12-XSPI is a Absolute encoder which acts as a slave and communicate with master micro controller as per the standard Protocol of SPI.
As per standard protocol of SPI RHSS12-XSPI communicate with master protocol when the MOSI pin is active high or 3FFF hex data is sent on the bus and the CS pin need to toggle from low to high for only one clock pulse.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 50k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp --> 5Vdc) VDD- 3.3Vdc (Vinp --> 3.3Vdc) |
1 --> VDD (5V or 3.3V) -0.7V 0 --> GND +0.4V |
| PWM Frequency | 1 Khz. |
The RHSS12-XSPI is a Absolute encoder which acts as a slave and communicate with master micro controller as per the standard Protocol of SPI.
As per standard protocol of SPI RHSS12-XSPI communicate with master protocol when the MOSI pin is active high or 3FFF hex data is sent on the bus and the CS pin need to toggle from low to high for only one clock pulse.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 10k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp --> 6 to 35Vdc or Vdc) VDD- 3.3Vdc (Vinp --> 3.3Vdc) |
1 --> VDD (5V or 3.3V) -0.7V 0 --> GND +0.4V |
| PWM Frequency | 1 Khz. |
Standard 6.3mm shaft dia
Ball Bearing version with 3mm shaft dia
Ball Bearing Servo Mount version with 3mm shaft dia
