- Potentiometer PM111 is a panel setting device for a maximum wattage ratting upto 1 watt.
- PM111 has been specifically designed to have longer life, No discontinuity and smooth movement of shaft.
- It has a feasibility to customize in several ways. Such as shaft modification, lug terminal arrangement, a vast range of ohmic value from 10 ohms to 30k ohms.
- The capability of the company to produce a vast range of potentiometer is a USP on its own.
- PM111 is being manufacture using high grade engineering plastic with ROHS and FR grade approval make it competent to compete in word market.
- The Product can be made to Ingress protection upto IP65 and above on request.
- PM111 has several other variants with model number V.R- 1G (Ganged Potentiometer), V.R-1S (Endless Potentiometer), V.R-1CT (4 wire potentiometer).

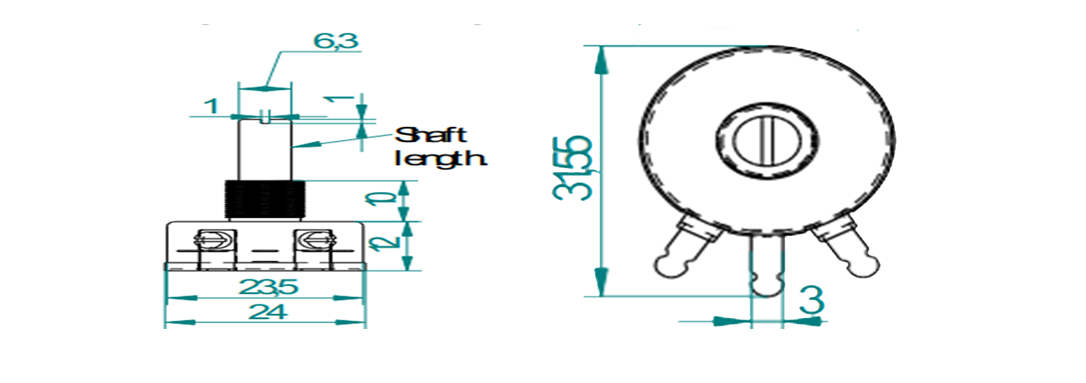

Mounting
For best performance of PM111 below points needs to be taken into consideration.
1) The hole in the panel should not be more than 9.5mm.
2) PM111 should be mounted with Star washer given along with the product and perpendicularity between the panel and axis of potentiometer should be maintained. 3) For applications with extreme vibration please use lock nut assembly which is being supplied on the demand.
Mechanical characteristics
| Housing Material | ROHS complaint PBT |
| Mechanical Angle of rotation | 300deg +/- 15 deg |
| Starting Torque. | |
| End Stop Torque | |
| Bush Material | Brass |
| Spindle Material | Brass (standard). S.S on request |
| Rotational Life expectancy | y 50,000 cycles |
Electrical Specification
| Resistance Range | 10 ohms to 33kOhms |
| Total resistance tolerance | +/-10% (Standard) +/- 5% or +/-2% available on request |
| End Resistance | 2 ohm or 0.1% which ever is greater |
| Temperature coefficient of resistance | Maximum 130 ppm / deg. C |
| Power rating | 1 watt @ 40 deg C |
| Maximum wiper current | Based on power rating of potentiometer and applied voltage |
| Maximum working voltage | 250Vdc |
| Insulation Resistance | 100 Mohms @ 500Vdc |
| Voltage Proof | 1000Vdc for 1 min @ sea Level |
| Effective Electrical angle | 270 +/- 15deg |
| Temperature range | upto 80 deg C |
| Standard resistance range | 10, 25, 50, 100, 250, 500, 1K, 2K, 2K5, 3K, 5K, 10K, 15K, 20K, 25K, 30K |
