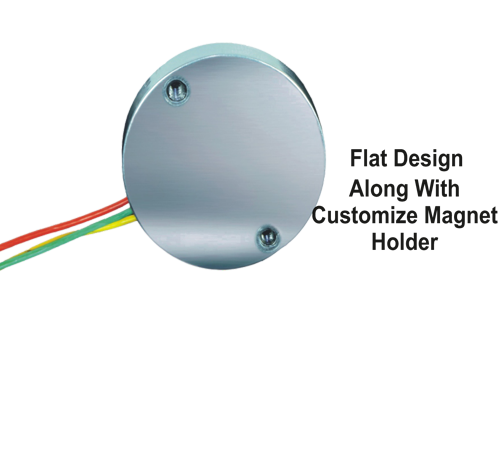

- Anemometer Sensor is used to detect the Direction as well as speed of wind which correspondence to the rotary motion of the magnet holder of the sensor.
- The Output signal correspondence to 0 to 360deg. This full range is programmable based on requirement.
- Since the Product is based on Contactless Hall's effect Technology it has very long life.
- Endless Rotary sensor can be specially programmed to have 4,3 or 2 cycles in over revolution hence increasing the accuracy.
- For modern microcontrollers AHS-X is capable to give output in 0 to 3.3Vdc, Incremental output and PWM output to suppress the effect of Noise are available. Flat
VARIANTS
- 12 bit resolution 24 or 5Vinput and 0 to 3.3Vdc/5Vdc/10Vdc/4 to 20mA/0 to 20mA Analog ratiomatric Output. 24 or 5 or 3.3Vinput and Redundant (Dual) Output 0 to 5Vdc. 24 or 5 or 3.3Vinput and PWM Output.
- 14 bit High Speed SPI or I2C communication Connectors or shielded cable available.
- IP 69k Protection available.
BENEFITS
- Non Contact Anemometer Sensor based on Hall Effect Tenology.
- Accurate Linearity upto 1% F.S. or 0.5% F.S (on request)
- Extremely Long Life.
- Extremely Compact in Size.
- Angle programmable based on customer specific requirement.
- Short Circuit Protected. ( For 5Vdc and PWM output versions).
- Overvoltage protected. ( For 5Vdc and PWM output versions).
- Reverse polarity protected. ( For 5Vdc and PWM output versions).
Material
| Component | Material |
|---|---|
| Sensor Head | Alluminum |
| Mounting Disc | Alluminum |
| Shaft Holder | Brass |
Environment
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 75 deg (standard) -40 to 140 deg ( on request) |
| Storage Temperature | -40 to 75 degC |
| Vibration | 20g |
Ordering Information
Mechanical And Mouting
Analog Output
| Supply Voltage(Vsupply) | 6 to 35Vdcz |
|---|---|
| Supply Current | 20mA |
| Frequency | 200Hz |
| Resolution | 12bit |
| Output(Voutput) | 0 to 3.3Vdc / 0 to 5Vdc/ 0 to 10Vdc/ 0 to 20mA/ 4 to 20mA |
| Load Resistance | For Voltage Output minimum 10Kohms For Current Output minimum 200Ohms |

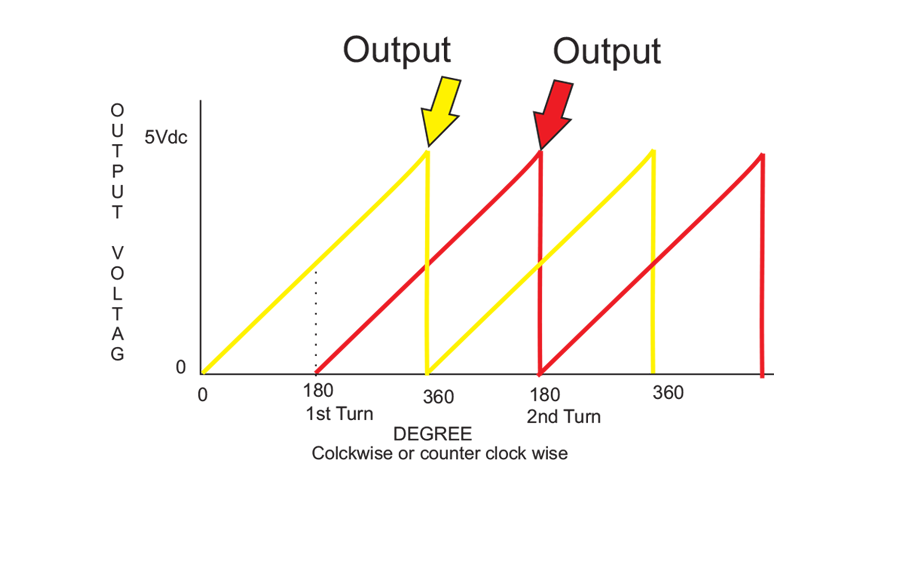

Redundant Analog
| Paameters | Results |
|---|---|
| Supply Voltage (Vsupply) | 6 to 35Vdc |
| Supply Current | 50mA |
| Frequency | 20Hz |
| Resolution | 12bit |
| Output (Voutput) | 0 to 5Vdc ( Output1 and Output 2 will have a phase difference of 180deg) |
| Load Resistance | Minimum 10K Ohms |
| Linearity | 1% Independent Linearity(Available 0.5% on request) |
Pulse Width Modulation Output
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 6 to 35Vdc |
| Supply Current | 20mA |
| Frequency | 200Hz, 500Hz, 1K Hz or 2 Khz based on requirement |
| Resolution | 12bit |
| Output (Voutput) | 0% to 100% duty Cycle |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
Incremental Output
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 3.3Vdc / 5Vdc / 6-35Vdc. |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 10000RPM Max. |

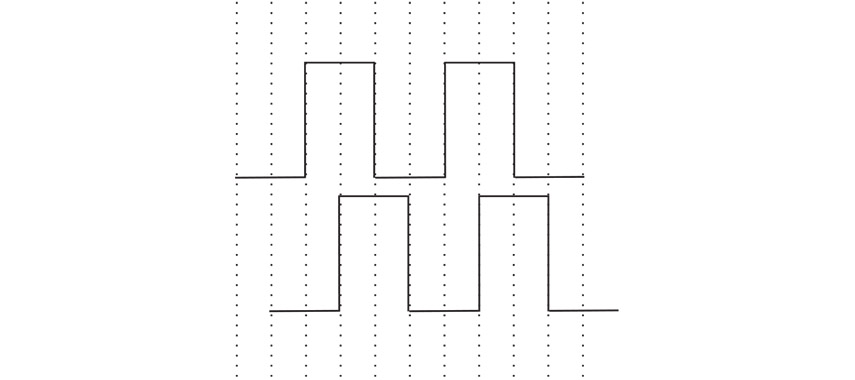

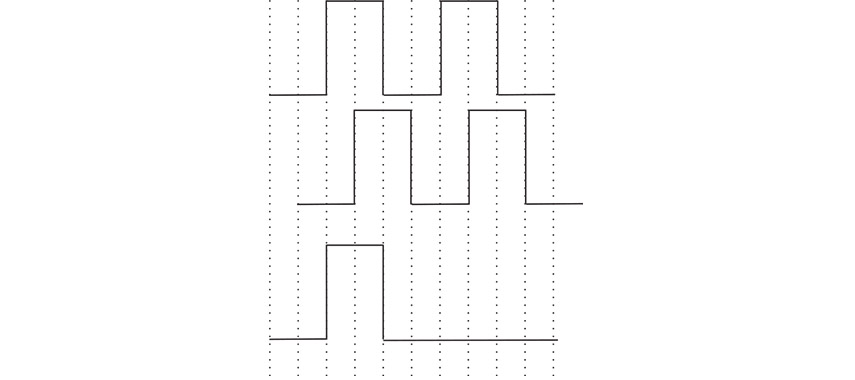

| PPR (Pulse Per Revolution)(A&B) | 25,50,100,200,256,300,400,500,512,1000,1024 A & B Pulse Lag each other by 90deg. |
| Output Signal | NPN Open Collector PNP Open Collector 5V TTL |
| Index pulse Z | 1 pulse per RPM |
Low Speed Quadrature Output
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc / 3.3Vdc |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 400RPM Max. |
| Position Per Revolution) (A&B) | 8,16,32,64,128,256,512,1024,2048 A & B Pulse Lag each other by 90deg.(TTL) |
| Output Signal | NPN Open Collector PNP Open Collector 5V TTL |
Two Wire Communication
The RHSS22-635I2C is a Absolute encoder which acts as a slave and communicate with master micro controller as per the
standard Protocol of I2C. It is also known as Two Wire Communication.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 6 to 35Vdc / 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 10k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp - 5Vdc) VDD- 3.3Vdc (Vinp | 1 --> VDD (5V or 3.3V) -0.7V 0 --> GND +0.4V |
| PWM Frequency | 1 Khz. |
Serial Peripheral Interface
The RHSS12-XSPI is a Absolute encoder which acts as a slave and communicate with master micro controller as per the standard Protocol of SPI.
As per standard protocol of SPI RHSS12-XSPI communicate with master protocol when the MOSI pin is active high or 3FFF hex data is sent on the bus and the CS pin need to toggle from low to high for only one clock pulse.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 6 to 35Vdc / 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 50k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp --> 6 to 35Vdc or 5Vdc) | 1 --> VDD (5V or 3.3V) -0.7V 0 --> GND +0.4V |
