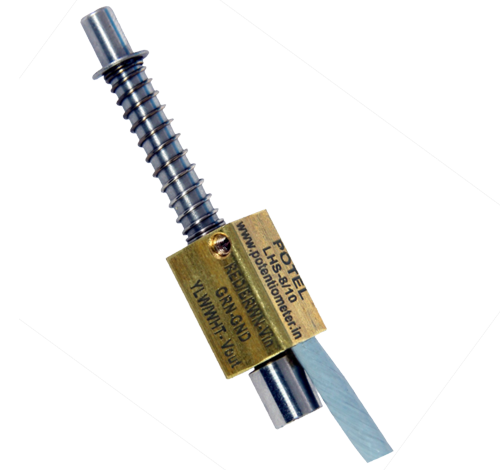

- The Linear Non contact hall’s effect Displacement transducer is used to detect the displacement of system which correspondence to the Linear motion of the shaft of the sensor.
- The Output signal correspondence to 0 to 10mm.Customization in the stroke length is possible.
- Since the Product is based on Contactless Hall's effect Technology it has very long life, along with high vibration withstand capacity.
- Linear Hall effect transducer is a economical product with highly good accuracy and resolution of 12bit over a full range.
- The USP of the sensor being Extremely compact in size and complete metal housing with IP protection class upto Ip67 .
VARIANTS
- 12 bit resolution 5V input and 0.5 to 4.5Vdc Analog Ratio matric Output.
- 12 bit resolution PWM Output.
- Metal housing of 18 X18 alluminum housing version available with many electrical variants
- Economical engineering plastic housing with flange mount in 48mm size with many electrical variants
- Spring Return and Non spring return version available.
BENEFITS
- Non Contact Linear Position Sensor based on Hall Effect Tenology.
- Accurate Linearity upto 1% F.S. or 0.5% F.S (on request)
- Extremely Long Life.
- Extremely Compact in Size.
- Short Circuit, Overvoltage and Reverse polarity protected.
Magnetic Cross Talk
If two LHS units are to be installed closer than 2 inch (measured between the center of both shaft), a magnetic shield, such as a small steel plate should be installed in between to prevent one encoder from caus ing smal l changes in reported pos ition through magneti c field c ros s -tal k .
Material
| Component | Material |
|---|---|
| Housing | Brass |
| Shaft | Stainless |
Environment
| Parameter | Value |
|---|---|
| Operating Temperature | -40 to 75 deg (standard) -40 to 140 deg ( on request) |
Ordering Information
| Parameters | Range |
|---|---|
| Starting force | |
| Maximul Radial Load | 1Kg. |
| Maximum Shaft Speed | 100 Shaft Stroke / min |
| Bearing Life cycles | 200 X 10^6 @rated radial Load |
| Weight of sensor | |
| Shaft Dia | 4mm |
| Parameters | Result |
|---|---|
| Supply Voltage(Vsupply) | 5Vdc(+/- 10%) |
| Supply Current | 20mA |
| Response time | 50mS |
| Resolution | 12bit @ full stroke |
| Load Resistamce | Minimum 10k ohms(preferred>100k ohms) |
| Output(Voutput) | 10% to 90% Vsupply(Ratiomatric)@ 5V supply |
| Electrical Travel | 10mm standard. (other on request maximum 20mm) |
| Mechanical Travel | 12mm standard. (other on request maximum 22mm) |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
- Signal Converter cards are available for 0 to 10Vdc, 4 to 20mA or any other digital communication protocol based on requirement.
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc (+/- 10%) |
| Supply Current | 20mA |
| Frequency | 200Hz, 500Hz, 1K Hz or 2 Khz based on requirement |
| Resolution | 12bit |
| Output Signal | 10% to 90% duty Cycle |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
Redundant Analog Output
The Graph is just for indicative purpose. Offset between Output 1 and Output 2 can be change or made
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc |
| Supply Current | 50mA |
| Electrical Angle | Default 359.92 deg. (Customization possible) |
| Response Time | 1kHz |
| Resolution | 12bit |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Load Resistance | Minimum 10K Ohms |
| Linearity | 1% Independent Linearity ( Available 0.5% on request) |
Incremental Output
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc / 3.3Vdc |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 10000RPM Max. |
| PPR (Pulse Per Revolution)(A&B) | 25,50,100,200,256,300,400,500,512,1000,1024 A & B Pulse Lag each other by 90deg.(TTL) |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Index pulse Z | 1 pulse per RPM (TTL) |
Low Speed Quadrature Output
| Parameter | Results |
|---|---|
| Supply Voltage (Vsupply) | 5Vdc / 3.3Vdc |
| Supply Current | 20mA |
| Incremental Output | |
| Electrical Speed | 400RPM Max. |
| PPR (Pulse Per Revolution)(A&B) | 8,16,32,64,128,256,512,1024,2048 A & B Pulse Lag each other by 90deg.(TTL) |
| Output (Voutput) | 0 to 5Vdc ( Redundant Output) (ideally 3% to 97% Vinput) |
| Index pulse Z | 1 pulse per RPM (TTL) |
Serial Peripheral Interface Sensor
The RHSS12-XSPI is a Absolute encoder which acts as a slave and communicate with master micro controller as per the standard Protocol of SPI.
As per standard protocol of SPI RHSS12-XSPI communicate with master protocol when the MOSI pin is active high or 3FFF hex data is sent on the bus and the CS pin need to toggle from low to high for only one clock pulse.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 50k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp > |
|
| PWM Frequency | 1 Khz. |
Two Wire Communication sensor
The RHSS12-XSPI is a Absolute encoder which acts as a slave and communicate with master micro controller as per the standard Protocol of SPI.
As per standard protocol of SPI RHSS12-XSPI communicate with master protocol when the MOSI pin is active high or 3FFF hex data is sent on the bus and the CS pin need to toggle from low to high for only one clock pulse.
RHSS12-XSPI communicate in 16 Bit of Transmission. After each cycle of communication it is compulsory to toggle CS pin from high to low.
RHSS12-XSPI has a provision of Dual Output first SPI communication and PWM mode of communication 14 Bit and 12 Bit of Resolution respectively.
Number of sensors can be connected in daisy chain mode of 4 wire or (n+3 wire connection). please contact Mr. Pavan Kinariwala(pavankinariwala@gmail.com) for more information on the same.
RHSS12-XSPI will communicate the angle information in below pattern.
| Parameter | Results |
|---|---|
| Input Voltage (Vinp) | 5Vdc / 3.3Vdc |
| Maximum clock Frequency | 10k Hz. |
| Digital pin Input / output level including address pins. VDD- 5Vdc (Vinp --6 to 35Vdc or Vdc) VDD- 3.3Vdc (Vinp -- 3.3Vdc) |
1 -- VDD (5V or 3.3V) -0.7V 0 -- GND +0.4V |
| PWM Frequency | 1 Khz. |

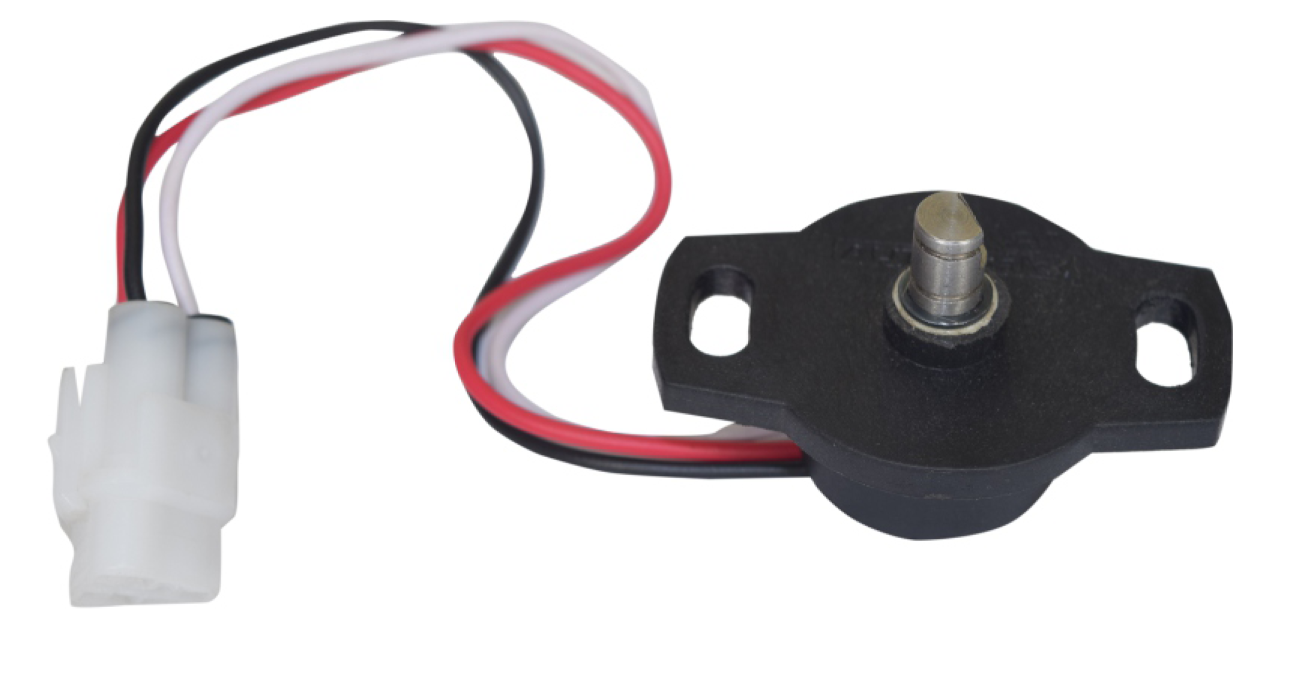

Flange Mounting version

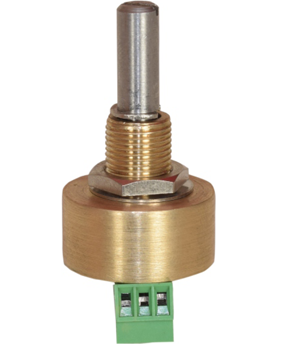

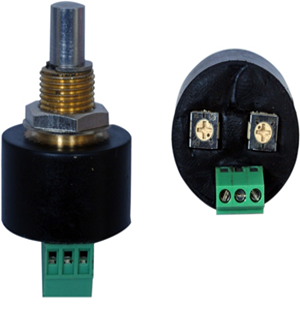

Brass Metal Housing Version
